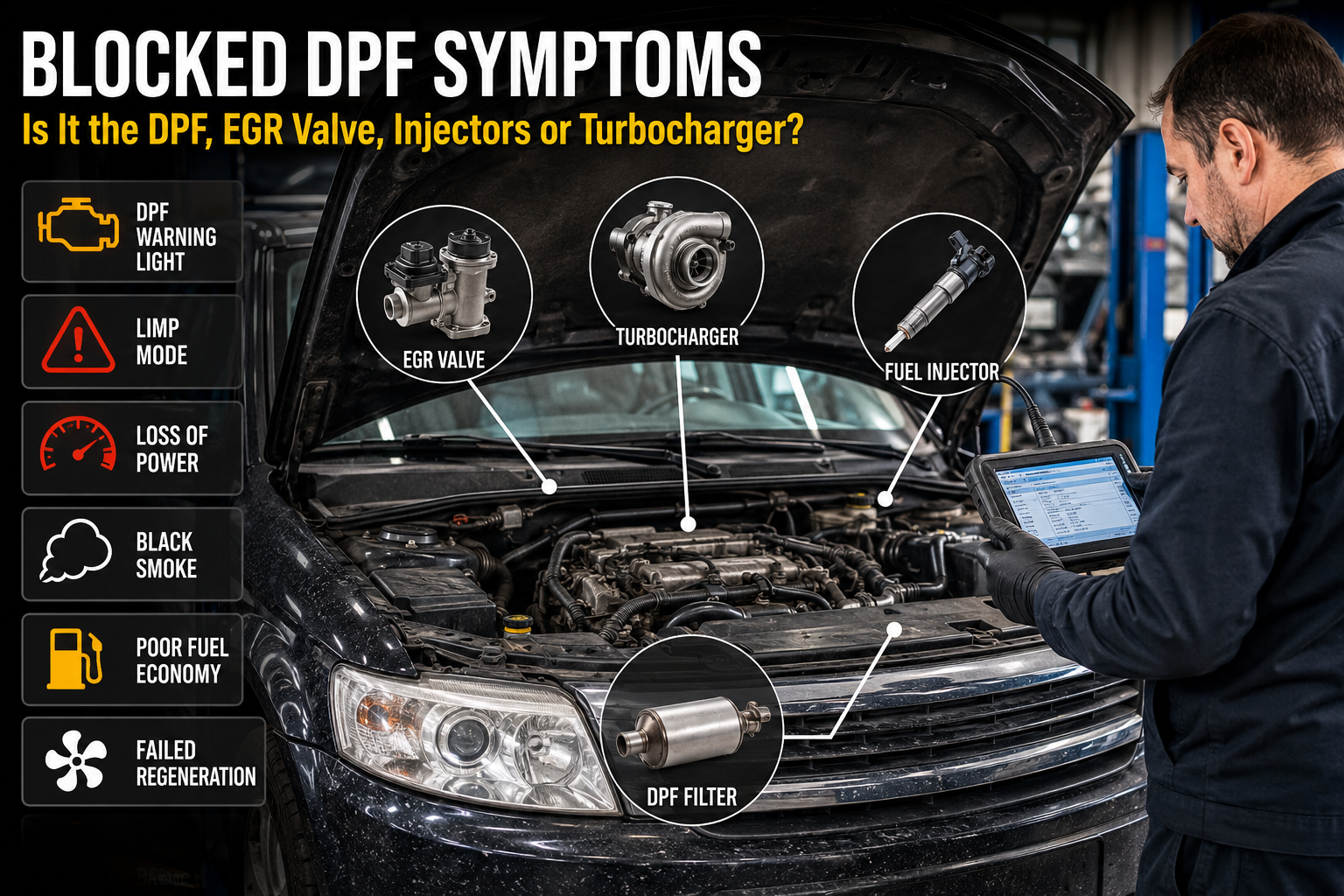

Blocked DPF Symptoms: Is It the DPF, EGR Valve, Injectors or Turbocharger?

Is your diesel vehicle losing power, showing a DPF warning light, smoking, using more fuel, or going into limp mode?

Many diesel drivers immediately think, "My DPF is blocked." But the real fault is not always the DPF. A blocked DPF can be the result of another problem, such as a faulty injector, EGR valve, turbocharger, boost leak, sensor fault, or poor regeneration.

At British Diesel Systems, we help diagnose and repair diesel fuel injection, turbocharger, DPF and engine running problems for cars, vans, 4x4s, tractors, plant machinery, generators and marine diesel engines.

Common blocked DPF symptoms

A diesel particulate filter, or DPF, is designed to trap soot from the exhaust. It then burns that soot off during a process called regeneration. If the vehicle does too many short journeys or the engine has another fault, the DPF may not regenerate properly and can become restricted. The RAC explains that a DPF warning light can sometimes clear after a longer drive, but if it does not go out, the vehicle should be checked by a garage.

Common signs include:

• DPF warning light on the dashboard
• Engine management light
• Limp mode
• Loss of power
• Poor acceleration
• Increased fuel consumption
• Frequent fan running after switching off
• Strong exhaust smell
• Black smoke
• Failed regeneration
• Fault codes for DPF pressure, soot load, EGR, boost or fuel system

A blocked DPF should not be ignored. The longer the vehicle is driven with a restriction, the more strain it can put on the turbo, EGR system and engine.

Is it really the DPF?

A blocked DPF is often a symptom, not the original cause.

For example, if a diesel injector is over-fuelling, the engine may produce too much soot. That soot goes into the DPF and blocks it faster than normal. Delphi lists common rail injector failure symptoms such as misfires, poor fuel economy, rough idle, excessive exhaust smoke and engine knock or rattle.

So cleaning or replacing the DPF without fixing the injector problem may only give a short-term result.

DPF, EGR, injector or turbo — how to tell the difference

1. DPF problem

A DPF fault often causes:

• DPF warning light
• Limp mode
• Poor acceleration
• High fuel consumption
• Failed regeneration
• Fault codes for soot load or pressure sensor

The DPF may be blocked because of short journeys, failed regeneration, wrong oil, faulty temperature sensors, pressure sensor faults, EGR problems, injector issues or turbo faults.

2. EGR valve problem

A faulty EGR valve can cause:

• Rough idle
• Hesitation
• Black smoke
• Poor throttle response
• Engine management light
• Excess soot entering the intake and exhaust system

If the EGR valve sticks open or closed, it can affect combustion and increase soot production. This can lead to DPF problems.

3. Diesel injector problem

Bad diesel injectors can cause:

• Hard starting
• Rough idle
• Diesel knock
• Misfire
• White smoke
• Black smoke
• Poor MPG
• Fuel smell
• Excessive soot
• DPF blocking repeatedly

If your DPF keeps blocking after cleaning, the injectors should be tested. A leaking or worn injector can quickly overload the DPF with soot.

4. Turbocharger problem

Turbo faults often feel like a DPF fault because both can cause loss of power. Diesel turbo failure symptoms can include loss of power, excessive exhaust smoke, whining or siren-like noises, and check engine lights.

A turbo problem may cause:

• Whistling or siren noise
• Blue, black or grey smoke
• Oil in boost pipes
• Low boost pressure
• Underboost fault code
• Poor acceleration
• Limp mode
• Engine using oil

If the turbo is not supplying enough air, the engine may run rich and create more soot. That extra soot can then block the DPF.

Black smoke from a diesel engine

Black smoke usually means the engine is burning too much fuel or not getting enough air.

Possible causes include:

• Faulty diesel injectors
• Blocked air filter
• Split boost pipe
• Turbo underboost
• EGR fault
• DPF restriction
• Intake carbon build-up
• Poor fuel quality
• Faulty sensors

Black smoke should be checked quickly. It can lead to DPF blockage, poor fuel economy and further engine damage.

Loss of power and limp mode

Diesel vehicles often go into limp mode to protect the engine when the ECU detects a fault.

Common causes include:

• Blocked DPF
• Turbo underboost
• Turbo overboost
• Faulty boost pressure sensor
• Split intercooler pipe
• EGR fault
• Fuel pressure issue
• Injector fault
• DPF pressure sensor fault

The important thing is not to guess. A diagnostic scan is only the first step. The fault codes must be tested properly, because one code can be triggered by another hidden fault.

For example, a DPF pressure fault may be caused by a blocked DPF, but it may also be caused by a faulty pressure sensor, split pipe, wiring fault or excessive soot from bad injectors.

Why DPF cleaning alone may not fix the problem

Many people clean the DPF, clear the codes and drive away — only for the light to return days or weeks later.

This usually means the root cause was not fixed.

A proper diesel diagnosis should check:

• DPF soot and ash levels
• DPF pressure readings
• Temperature sensor readings
• EGR operation
• Injector correction values
• Fuel rail pressure
• Turbo boost pressure
• Boost leaks
• Intake restrictions
• Exhaust back pressure
• Oil quality and service history

If the DPF is blocked because of faulty injectors or turbo problems, cleaning the DPF alone will not solve it.

Vehicles and machines we can help with

We can help diagnose diesel running problems on:

• Cars
• Vans
• 4x4s
• Taxis
• Fleet vehicles
• Tractors
• Plant machinery
• Generators
• Marine diesel engines
• Agricultural machinery
• Commercial diesel engines

Common vehicles with diesel DPF, injector and turbo issues include Ford Transit, Mercedes Sprinter, VW Transporter, VW Crafter, BMW diesel models, Peugeot HDi, Citroën HDi, Range Rover TDV6/SDV6, Renault Trafic, Vauxhall Vivaro, Isuzu, DAF and many more.

When should you get it checked?

You should book a diesel diagnostic check if you notice:

• DPF light stays on
• Vehicle keeps going into limp mode
• Black smoke or white smoke
• Whistling turbo noise
• Hard starting
• Rough idle
• Poor fuel economy
• Repeated DPF blockage
• Engine management light
• Loss of power under load

The earlier the problem is diagnosed, the better chance you have of avoiding expensive damage.
