Delphi HDF296 Fuel Filter Replacement Guide – Step-by-Step for Tractors, Generators & Agricultural Machinery

If your diesel engine is running rough, losing power, or showing signs of fuel starvation, a blocked or worn fuel filter is often the culprit. This guide walks you through replacing the Delphi HDF296 diesel fuel filter (also known as 7111-296 or HDF 296) — one of the most widely used filter elements in tractors, agricultural machinery, marine engines, and diesel generators.

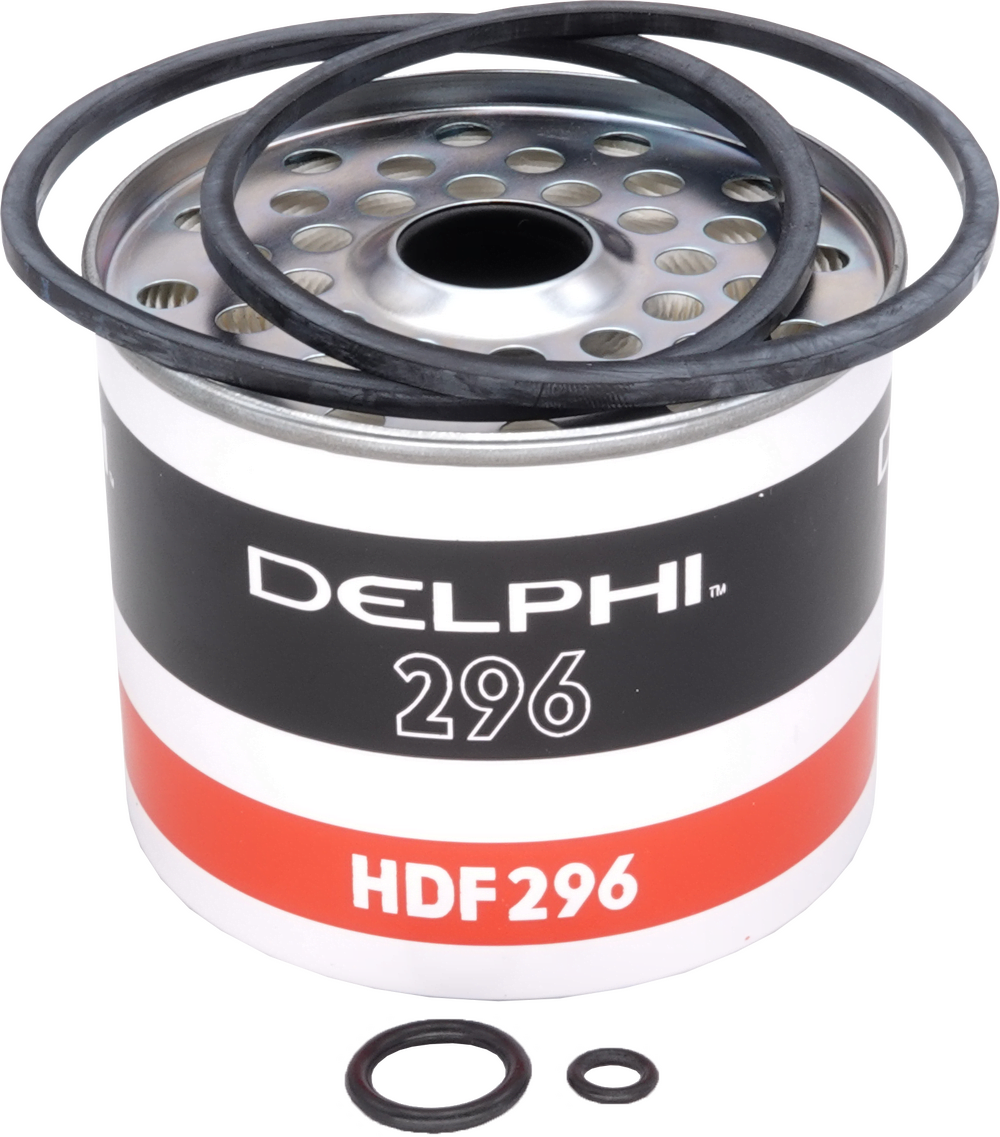

What is the Delphi HDF296?

The HDF296 is a genuine Delphi diesel fuel filter element designed to remove dirt, rust, water, and contaminants from the fuel supply before it reaches your injectors and fuel pump. It meets USA, UK, and EU OEM specifications and is a direct replacement for the original filter on a wide range of equipment.

Cross-reference part numbers: HDF296 / 7111-296 / HDF 296

Common Applications

• Agricultural tractors
• Diesel generators
• Marine engines
• Classic and vintage diesel vehicles
• Industrial machinery

Always verify the part number against your equipment's service manual before purchasing.

Signs Your Fuel Filter Needs Replacing

• Engine hard to start or won't start
• Loss of power under load
• Rough or uneven idling
• Increased fuel consumption
• Engine misfiring or hesitation
• Visible contamination in the fuel bowl

As a general rule, replace the HDF296 every 500 hours of operation or annually — whichever comes first.

Tools You'll Need

• Filter wrench or strap wrench
• Drain pan or container
• Clean rags
• Nitrile gloves
• New Delphi HDF296 filter element

Step-by-Step Replacement Guide

1. Safety first — turn off the engine and allow it to cool completely. Disconnect the battery if working near electrical components.
2. Locate the fuel filter — on most tractors and generators, the fuel filter assembly is mounted on the engine block or chassis near the fuel pump. Consult your service manual if unsure.
3. Place a drain pan underneath the filter housing to catch any residual fuel.
4. Shut off the fuel supply — close the fuel tap or shutoff valve on the tank.
5. Remove the filter bowl — unscrew the filter bowl or housing using a filter wrench. Take care not to damage the threads.
6. Remove the old HDF296 element — lift out the old filter element and dispose of it responsibly. Note the orientation before removal.
7. Clean the housing — wipe the inside of the filter bowl with a clean rag. Check the sealing O-ring and replace if cracked or worn.
8. Install the new HDF296 — insert the new Delphi HDF296 element in the correct orientation. Ensure it seats properly.
9. Reassemble and tighten — refit the filter bowl and tighten firmly by hand, then a quarter turn with the wrench. Do not overtighten.
10. Reopen the fuel supply — open the fuel tap and allow the system to prime. Bleed the fuel system if required (refer to your engine manual).
11. Start the engine — run for a few minutes and check for leaks around the filter housing.

Bleeding the Fuel System

Many diesel engines require bleeding after a filter change to remove air from the fuel lines. Locate the bleed screw on the filter housing or injection pump, loosen it slightly, and operate the hand primer pump until fuel flows without bubbles, then retighten. Refer to your specific engine manual for the correct bleeding procedure.
